Description
Essential details
- Type:
-
Multi-Function Packaging Machine
- Applicable Industries:
-
Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
- Weight (KG):
-
350
- Condition:
-
New
- Function:
-
FILLING, Labeling, Laminating, Sealing, Packing
- Application:
-
Chemical, Beverage
- Packaging Type:
-
Bags, Film, Pouch, Stand-up Pouch
- Packaging Material:
-
Plastic
- Automatic Grade:
-
Automatic
- Driven Type:
-
Electric
- Voltage:
-
220V
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
TOP Y MACHINERY
- Dimension(L*W*H):
-
(L)990mm*(W)1430mm*(H)2200mm
- Warranty:
-
2 years
- Key Selling Points:
-
Automatic
- Marketing Type:
-
New Product 2022
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
2 years
- Core Components:
-
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
- Production Capacity:
-
40bag/min
- After-sales Service Provided:
-
Engineers available to service machinery overseas
- Packing speed::
-
15-60bags/min
- Air consumption::
-
0.6Mps 0.36m3/min
- Roll film Width& Diameter::
-
Max: (W)400mm, (L)380mm
- Film Material::
-
OPP/CPP,OPP/PE, MST/PET/PE
- Bag sealing type::
-
Stand pillow bag, Gusset bag, Square bottom bag, Chain bag
- Driven System::
-
Panasonic servo motors for film pulling
- Machine Material::
-
SS#304 or Carbon/Mild Steel
- Controller System::
-
PLC
- Warranty::
-
12 months
Supply Ability
- Supply Ability
- 20 Set/Sets per Month
Packaging & delivery
- Packaging Details
plywood cases are easy to dismantle. The machines are wrapped with shrink film to prevent stainless steel machine frames getting rust during sea freight
Products Description
Standard Feature:
-Servo motor control system with simple operation
-7” Color touchscreen
-Servo film feeding system, correct register, high automation.
-Intelligent temperature controller is used, correct temperature control ensures a nice and smooth seal.
-Perfect automatic alarming protective function, reducing the consumption up to the lowest.
-According to customer demand, the machine can produce pillow bags,quad-seal bags, and punched hanging bags.Working principle:
Film transport and Unwind → Film TensionBag → Film Tracking and Positioning → Bag forming → Bag Filling and Sealing → Bag Discharge
-7” Color touchscreen
-Servo film feeding system, correct register, high automation.
-Intelligent temperature controller is used, correct temperature control ensures a nice and smooth seal.
-Perfect automatic alarming protective function, reducing the consumption up to the lowest.
-According to customer demand, the machine can produce pillow bags,quad-seal bags, and punched hanging bags.Working principle:
Film transport and Unwind → Film TensionBag → Film Tracking and Positioning → Bag forming → Bag Filling and Sealing → Bag Discharge
|
Machine Series
|
VFFS Packing Machine
|
||||
|
Model No.
|
TOPY-VP420
|
TOPY-VP520
|
TOPY-VP620
|
TOPY-VP730
|
TOPY-VP800
|
|
Bag Width
|
60-200mm
|
100-250mm
|
140-350mm
|
250-400mm
|
|
|
Bag Length
|
70-300mm
|
80-350mm
|
200-400mm
|
150-500mm
|
|
|
Bag Speed (Single motor)
|
10-70
bags/min.
|
15-60 bags/min.
|
10-50 bags/mins
|
5-30
bags/min.
|
|
|
Film Width
|
120-420mm
|
220-520mm
|
220-620mm
|
300-720mm
|
340-800mm
|
|
Air Consumption
|
0.7 Mps
0.5m3/min.
|
0.8 Mps
0.4m3/min.
|
0.8 Mps
0.5m3/min.
|
0.6 Mps
0.7m3/min.
|
|
|
Dimension
|
1530*970*1600
mm
|
1430*1200*1700mm
|
1340*1580*1950mm
|
1500*1680*2100mm
|
|
|
Weight
|
450kg
|
680kg
|
700kg
|
800kg
|
1000kg
|
|
Power Supply
|
2.2Kw
220V 50/60Hz
|
2.5Kw
220V 50/60Hz
|
2.5Kw
220V 50/60Hz
|
3.0Kw
220V 50/60Hz
|
|

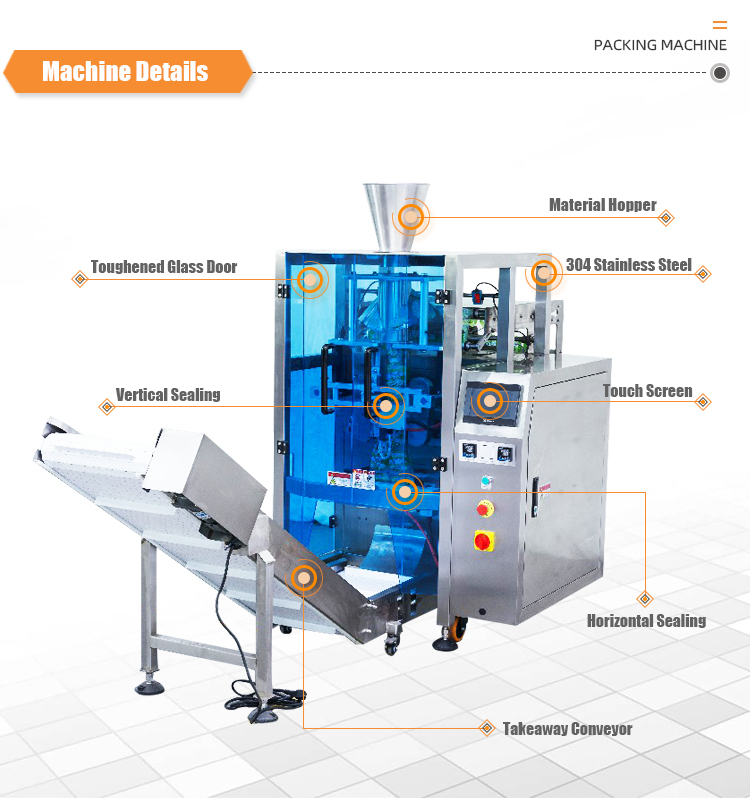

Function and characteristics:
1. Safety device: The machine stop at the abnormal air pressure, heater disconnection alarm
2. The width of the bags could be adjusted by an electrical motor.
3. It matches the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
4. The packing bag suits an extensive range, suit for multi-layer compounds, monolayer PE, PP, and so on Preformed bag is made of film and paper.
2. The width of the bags could be adjusted by an electrical motor.
3. It matches the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
4. The packing bag suits an extensive range, suit for multi-layer compounds, monolayer PE, PP, and so on Preformed bag is made of film and paper.
